Bryant® Heating and Cooling Products

Base Line Heat Pump Systems

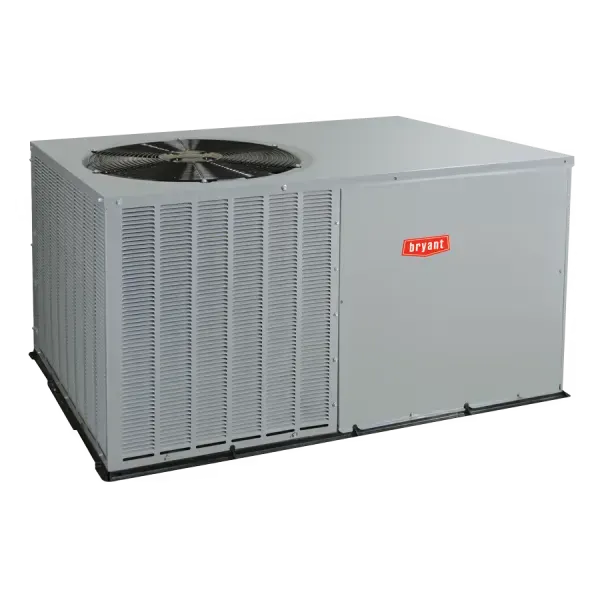

Model: PH4Z

THE SPACE-SAVING, EASY ON YOUR BUDGET CHOICE

Our most affordable packaged comfort systems, Base Line heat pumps deliver dependable comfort for your manufactured or zero lot line home. So even though space may be at a premium, your comfort doesn't have to be.


SYSTEM TYPE : Heat Pumps


COOLING EFFICIENCY : up to 13.4 SEER2


HEATING EFFICIENCY : 6.7 HSPF2


COMPRESSOR TYPE : Single-Stage

Features

  • Enjoy cool, summer comfort with 13.4 SEER2 and 11 EER2 cooling efficiency
  • Transition to winter with heating efficiency of up to 6.7 HSPF2
  • Compact cabinet is designed for limited space applications, including manufactured housing
  • Galvanized steel cabinet with “coil on top” design for lasting durability against the elements
  • Louvered grille protects the coil against physical damage
  • Solid cabinet base panels help prevent infiltration of dirt, debris and moisture
  • 10-year parts limited warranty upon registration1


1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

Energy Efficiency

13.4 SEER2/ 11 EER2, 6.7 HSPF2 electric heating

Heating and Cooling Stages

Single-stage operation

Quiet Levels

During most common cooling operating condition: 73 dB

Filter Change Reminders

With compatible control

Blower Motor

High-efficiency fixed-speed

Compressor

Single-stage scroll

Refrigerant

Puron ® refrigerant

Coil

Corrosion-resistant aluminum coil design

Capacity

2-5 tons

Design

Narrow lot design

Construction

Galvanized steel with high-tech composite (rust-free) base

Paint

Baked-on urethane base coat and polyester top coat
